Description

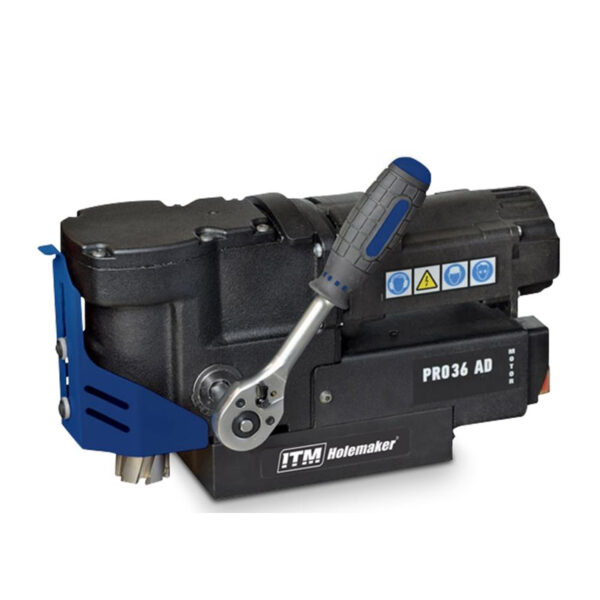

The PRO 36 AD is an ultra-low profile mag drill, that fits in the tightest of spots. Perfect solution for any applications in confined spaces, where typical mag drills are too large. A powerful motor and strong electromagnetic base enable drilling of holes up to 36 mm diameter to a depth of up to 30 mm (1-3/16″).

PRO-36 AD accepts both TCT and HSS cutters as well as twist drill drills with 19,05 mm (3/4″) Weldon shank.

Features:

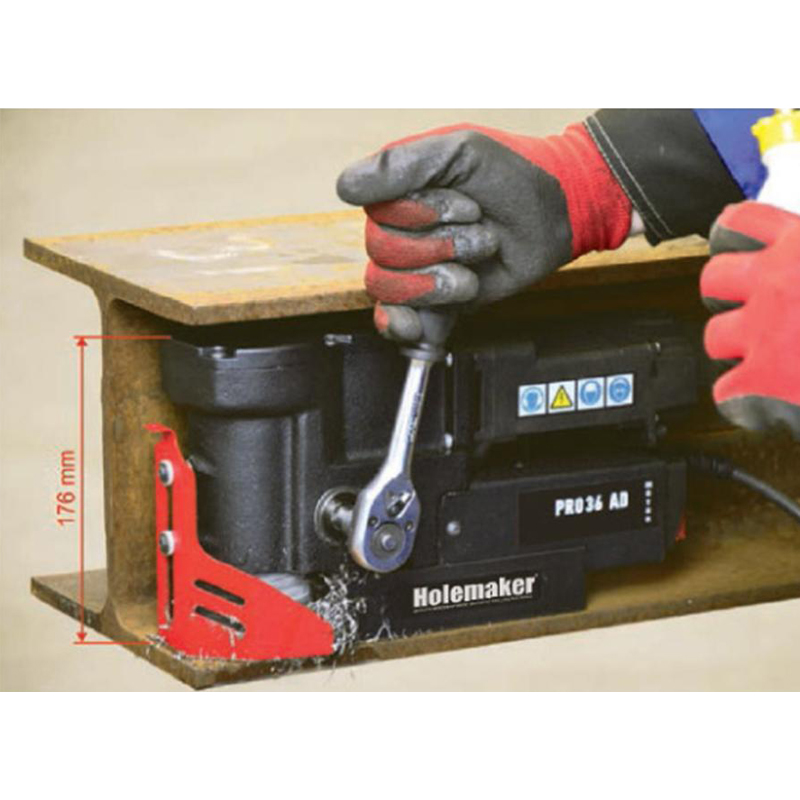

Ultra-low profile mag drill of 176 mm height only.

Extremely low weight of just 9.5 kg (21 lbs).

Milling capacity up to 36 mm (1-7/16”).

Accepts also twist drills with 19,05 mm (3/4”) Weldon shank.

Stroke – 39 mm.

Integrated swarf guard.

Detachable feed lever (feat. ratchet) can be fixed from either side.

Lifting handle for easy transportation.

Cooling with a bottle

Specifications:

Capacity (Diameter ): 36mm

Capacity (Depth ): 30mm

Capacity (Twist Drill ): 12mm

Motor Power: 920 watt

Input Power: 1000 watt Single Phase 240V

Speed: 370rpm

Weight: 9.5kg

Magnetic Dead Lift: 8900Nm On 25mm Steel Plate

Stroke: 36mm

Height: 176mm Constant Working Height

Through Spindle Coolant System

Smart Magnet Technology to Ensure Sufficient Magnetic Adhesion

NOTE:

DRY HIRE FOR 24HRS ONLY, PLEASE CONTACT OUR TEAM FOR AVAILABILITY
